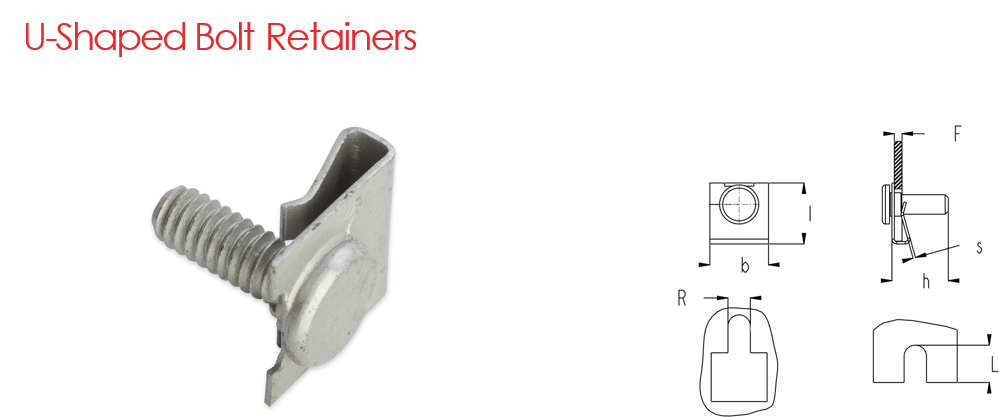

U-Shaped Bolt Retainer
| Part Number | Remarks | Legacy Part Number | Thread Specification | Panel Thickness (F) | Slot Width (R) | Slot Length (L) | Width (b) | Length (l) | Screw Height (h) | Material Thickness (s) |
| Imperial | ||||||||||
| 136860 | 136860 C34030-1420 | C34030-1420 | 1/4-20 | 0.098 - 0.118 | 0.395 - 0.405 | 0.68 | 0.75 | 0.75 | 0.75 | 0.03 |
| 229986 | 229986 | 229986 | 1/4-20 | 0.098 - 0.118 | 0.395 - 0.405 | 0.68 | 0.75 | 0.75 | 1 | 0.03 |
| Metric | ||||||||||
| 136862 | 136862 C34114-M61 | C34114-M61 | M6x1.0 | 0.08 - 1.07 | 9.45 - 9.55 | 14.28 | 17.45 | 14.43 | 13.6 | 0.43 |
